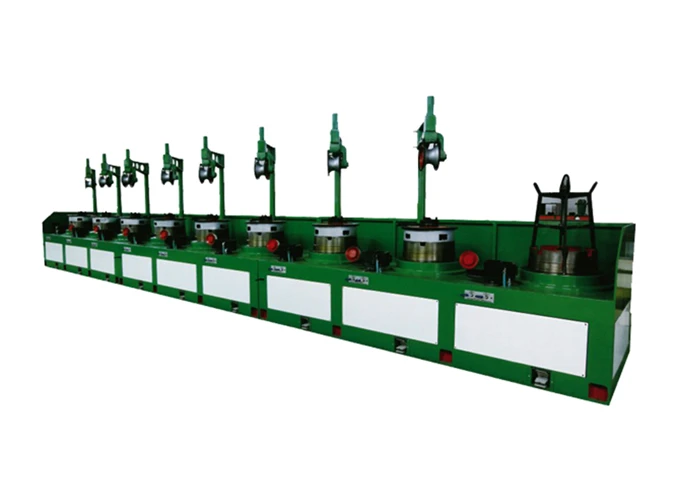

OTO Type Wire Drawing Machine LW9/560

The OTO Type Wire Drawing Machine LW9/560 is a highly efficient and reliable machinery that excels in drawing metal wires. With its advanced design and precise control, this equipment facilitates the reduction of wire diameter while ensuring excellent surface quality and dimensional accuracy. It finds application in various industries, including steel, wire rope, and electrical cable manufacturing, where quality wire production is crucial.

Specifications of OTO Type Wire Drawing Machine LW9/560

Diameter of capstanmm560400-360
Drawing diestime99
Maximum diameter of inlet wiremmφ6.5φ3.0-φ2.5
Minmum diameter of outlet wiremmφ2.0φ0.9-φ0.7
Total compression rate%90.5391
Average compression rate%23.0423.5
Maximum line speedm/s612
Motor powerKw18.5-307.5-11
Dimensionmm12000x1850x22509000x1650x2250
Weightt21.5
Inlet wariable- frequency
PLC controlPLC control



Safety Measures When Operating OTO Type Wire Drawing Machine LW9/560

Operating the OTO Type Wire Drawing Machine LW9/560 requires strict adherence to safety measures to protect operators and ensure smooth operations. Here are four crucial safety measures:

1. Operator Training and Certification: Before operating the machine, operators should receive comprehensive training on its use, safety protocols, and emergency procedures. Certification should be provided to confirm their competency.

2. Machine Inspection and Maintenance: Regularly inspect the wire drawing machine for any signs of wear, damage, or malfunction. Ensure that all safety guards, shields, and interlock systems are in place and functioning correctly. Any issues should be promptly addressed and resolved by qualified technicians.

3. Personal Protective Equipment (PPE): Operators must wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, gloves, and steel-toed shoes or boots. The specific PPE required may vary depending on the workplace environment and local safety regulations.

4. Emergency Stop and Shutdown Procedures: Operators should be familiar with the location and operation of the machine's emergency stop button or switch. They should also be trained in shutdown procedures in case of emergencies, such as power outages, equipment malfunctions, or other hazardous situations.

Additionally, it's essential to follow all manufacturer's guidelines and safety recommendations outlined in the machine's user manual. Safety should always be a top priority when operating the OTO Type Wire Drawing Machine LW9/560 to minimize the risk of accidents and injuries in the workplace.
